Item No. NE7123 BACK to glass machinery BACK to Home Page
	Category :	Glass Machinery
	Type :	Laminated Glass Cutting Line
	Brand :	Macotec
	Model :	Strato Line SASX Y3.7/3.2

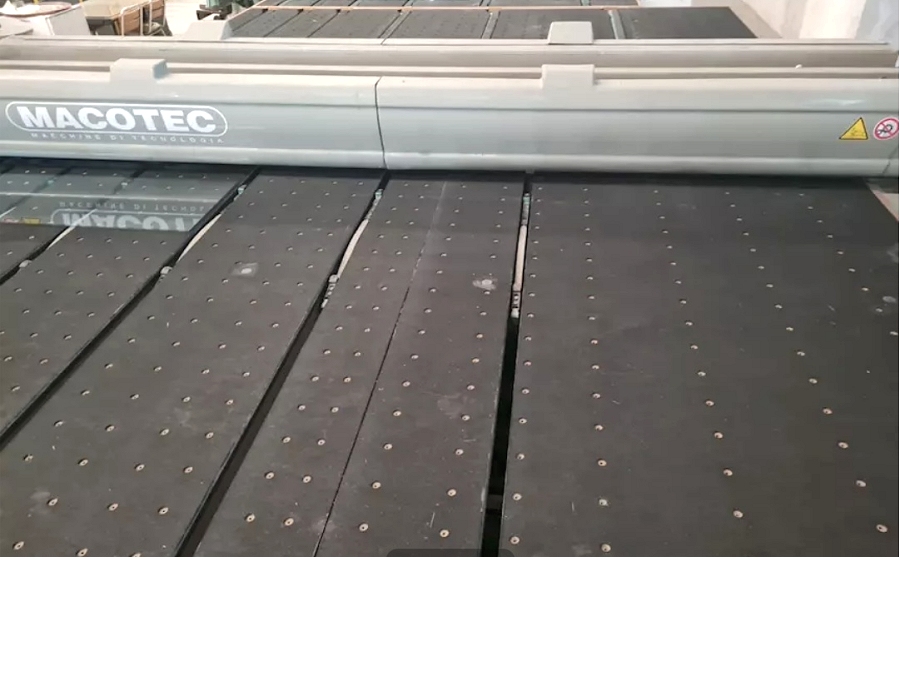

	Description :	Macotec Strato Line SASX Y3.7/3.2 laminated cutting line for sale. Cutting Module - Automatic table for straight cutting of laminated glass equipped with: electro-welded iron structure air cushion for moving the sheet mechanical system for detachment CN with display and digital Brushless motors cutting pressures managed automatically quartz heat irradiator with fast HP frequency for opening the PVB blade system for cutting PVB up to 4.56 mm laser tracer used as a pointer for the correct positioning of the glass sheets when making oblique and transversal cuts Fully automatic PVB engraving, breakout and separation system, carried out without any movement of the sheet. Table designed for engraving monolithic glass sheets with thicknesses from 3 to 15 mm Useful cut: 3700 mm Max. cutting speed: 80 m/min Glass thickness: from 3+3 to 8+8 mm PVB thickness: from 0.38 to 4.56 mm Cutting precision: ± 0.5 mm Module With Counters 3.1 - Automatic device for positioning next to the cutting module equipped with: electro-welded iron structure with air cushion for moving the sheet automatic lower bridge, motorized with brushless motors, complete with counters (size 300 mm., max. 3050 mm.) tip-up table for unloading the glass sheets Installed power: 8 KW, 380 V, 50 Hz. Weight: 3800 Kg. Overall dimensions: 4320x4630x1300 (h.) min.
	Age :	2008
	Price :	€35,000
	Location :	Italy
	Contact :	Faber
	Telephone :	+39 328 2604098
	Email :	Faberglass@icloud.com
		(Please mention WinMart when you contact the vendor)
