Centauro CVS20 chain mortiser | North Yorkshire

Item No. NE7136 BACK to woodworking BACK to Home Page
	Category :	Woodworking Machinery
	Type :	Chain Mortiser
	Brand :	Centauro
	Model :	CVS 20

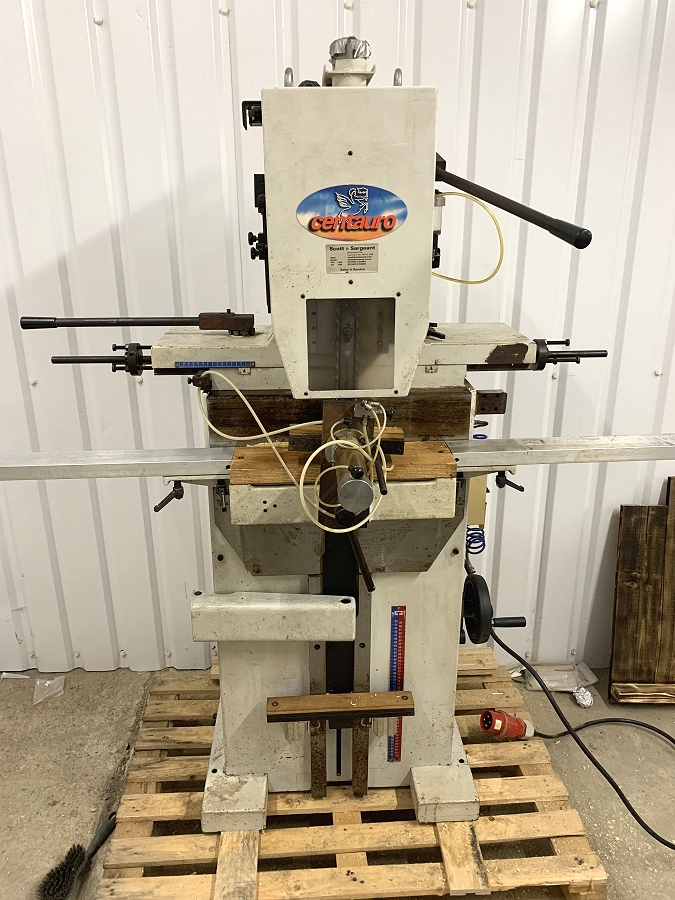

	Descripton :	Centauro CVS20 chain mortiser, comes with 1 chain, already on the machine. In excellent working order. Features include: 2 x extending arms Automatic oiling attached 3 phase Pneumatic clamp for work piece Max. slot depth 150 mm Max. slot length 340 mm Longitudinal stroke 300 mm Transversal stroke 80 mm Head rotation + - 45° Max. height of window piece on table 250 mm Max./Min. door/frame height* 1000 / 600* mm Working table sizes 460x135 mm Tilt of working table + - 45° Chain motor power 3 HP (kW 2,2) Dust extrac. outlet 1 x 60 mm dia. Overall dimensions 1916 x 1400 x 1026 mm Net weight 340 Kg Sound power level 104.1 db(A) NOTE - All info is approximate. Can deliver at cost via Pallet Network, UK mainland only. Any questions, please ask.
	Age :	2001
	Price :	£2,500 ono
	Location :	North Yorkshire
	Contact :	Gary Outram
	Telephone :	07710 480337
	Email :	Garyoutram@aol.com
		(Please mention WinMart when you contact the vendor)
