Descripton : |
The Elumatec AS70 is a very popular single head router.According to the Elumatec website the machine has the following capabilites:
- Variable use for processing aluminium and upvc profiles
- Precise routing with minimum of effort, simple two hand operation
- Copy routing 1:1 ratio therefore easy transfer of the routing pattern from a template onto the profile
- Your own template can be produced (copying the template pattern on a raw template)
- Possibility of copy routing after stops (only rectangular routing patterns)
- Pneumatic material clamping
- Manual triple stepped copy finger for different cutter diameter
Technical information:
Routing capacity horizontal with length stop 240 x 90 mm
- Routing capacity horizontal with copying template 240 x 90 mm
- Spindle speed 12.000 r.p.m.
- Clamping capacity for sections 180 x 150 mm
- Stroke 110 mm
- Power supply 230 / 400 V, 3~, 50 Hz
- Power output 0,74 kW
- Compressed air supply 7 bar
- Air consumption per working cycle 12 l without mist spray, 24 l with mist spray
- Length 720 mm x width 650 mm x height 1,440 mm
- Weight 101 kg
At the moment, the machine is set up for uPVC routing.
However for an extra £100 we can fit a spray mist to the machine for aluminium routing.

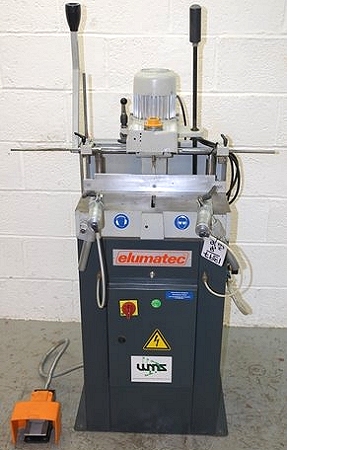

Please note, library picture shown, please contact for me information |
